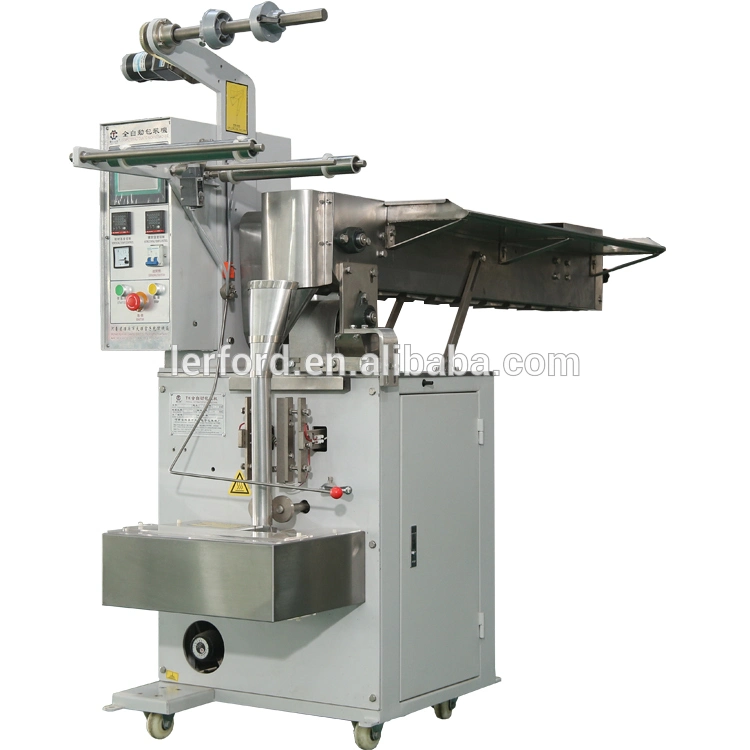

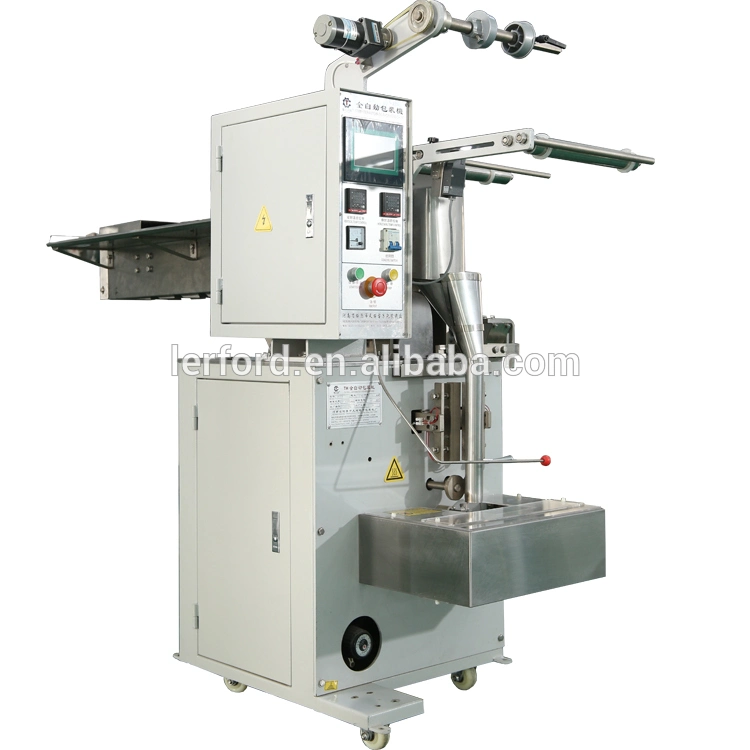

Automatic Chain Bucket Garlic,Dumplings,Fish,Frozen Food Snack Packaging Machine
Product Overview
New Vertical Semi-automatic Bucket Chain Walnut and Macadamia nut Weighing and packing machine
1.Bucket Chain nut Weighing and packing machine can be measured by hand; automatic filling, blanking, bag making, seal printing and other periodic operations; integrated photoelectric tracking, stepless speed regulation and other functions; sealing form is backpack. 2.The scope of application of the dump-type packaging machine: This machine is suitable for mixed packaging of toys, hardware, dwarfs, grosvenoring, pimping, cold skin, soft candy, puffed food, shrimp sticks (such as puffed award card, milk chips and chocolate beans). 3. Intelligent control of micro-computer chip, display of Chinese menu on LCD screen, friendly man-machine interface, automatic measurement of bag length, memory of last working state and automatic display of faults. 4.Automatic display of packaging speed, can be automatically cut according to need, slicing number 0-99 package adjustable, cutting speed 0-9 gear adjustable. 5.It can set photoelectric fault automatic shutdown, automatic shutdown when the material tray is unexpected, so as to avoid waste of packaging bags.
Functions and Features: 1. The transverse seal guide axle of the machine is made of bearing steel material refined by special technology, which is super wear-resistant. High accuracy, low noise, easy maintenance. 2. Copper sleeve with sealing ring, oil will not leak, clean and hygienic. All parts of the contact packaging materials are made of stainless steel, which is hygienic and pollution-free. 3. Advanced design of vibration blanking control circuit. Vibration force of 0-9 gears can be adjusted. The noise is obviously less than that of ordinary models. The cutting material is more ideal.
PRODUCT SPECIFICATIONS
Model | THB-320 |
Filling range | 1-500g/bag |
Bag sealing type | Back sealing |
Bag length(mm) | 40-210 |
Bag width(mm) | 30-150 |
Packing speed | 50-120bags/min |
Accuracy | ±0.1% |
Power and voltage | 380v/220V,50Hz/60Hz(can be customized) |
Power | 1.8Kw |
Weight | 280kg |
Dimension | 1050*750*1550mm |
Touch Screen
Size: 7" touch screen and colorful
Brand:Weinview
Original: Taiwan
* Easy Control bag length of each bag, high sensitive electro-optical sensor system is provide to the realize automatic a lignment
on the packing film
Brand:Weinview
Original: Taiwan
* Easy Control bag length of each bag, high sensitive electro-optical sensor system is provide to the realize automatic a lignment
on the packing film
Bag Making Device
Name: Bag Former
Material: Food Grade 304 Stainless Steel
Size: According Client Need Size To Customized
* The machine can make standard middle sealing bag,3/4 sides sealing bag or gusset bag type.
Material: Food Grade 304 Stainless Steel
Size: According Client Need Size To Customized
* The machine can make standard middle sealing bag,3/4 sides sealing bag or gusset bag type.
Date Printing Device
*Application: It is suitable for various kind of the sanding filing packing machine for making bags. Which have the air source by
themselves. And type writing code matching for the sticking the label's machine, it is small in volume and easy to install, widely
used for printing date of production, batch number and etc. in the industries of foodstuff, beverage, pharmaceuticals and so on.
themselves. And type writing code matching for the sticking the label's machine, it is small in volume and easy to install, widely
used for printing date of production, batch number and etc. in the industries of foodstuff, beverage, pharmaceuticals and so on.
Mesauring Parts
Name: Semi-automatic Metering Device
Material: Food Grade 304SUS+ plastic/ Stainless Steel
Szie: 10-500ml
* Using volume conversion principle technology, simple and small error range
Material: Food Grade 304SUS+ plastic/ Stainless Steel
Szie: 10-500ml
* Using volume conversion principle technology, simple and small error range
Electronic Eyes
Brand: Ortai
Original: China
*High sensitive optical lextric color mark tracking system and digital input cutting position,which makes the sealing and cutting
more accurate.
Original: China
*High sensitive optical lextric color mark tracking system and digital input cutting position,which makes the sealing and cutting
more accurate.
Electronic Box
Name: PLC controller
Brand: Siemens
Original: Germany
* Used imported electrical brands is for system stability and extending the life of the machine
Brand: Siemens
Original: Germany
* Used imported electrical brands is for system stability and extending the life of the machine
