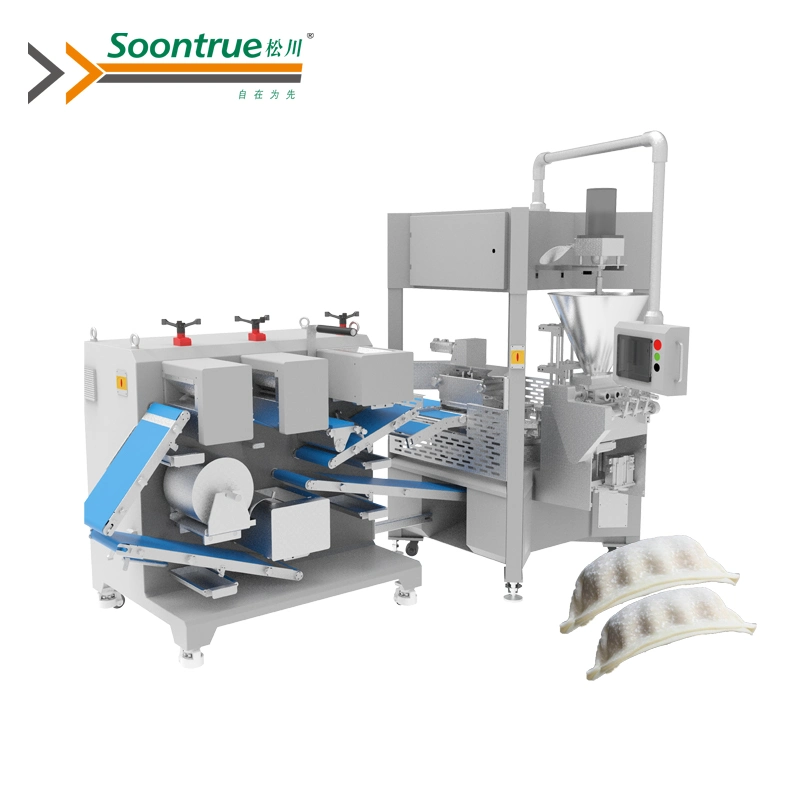

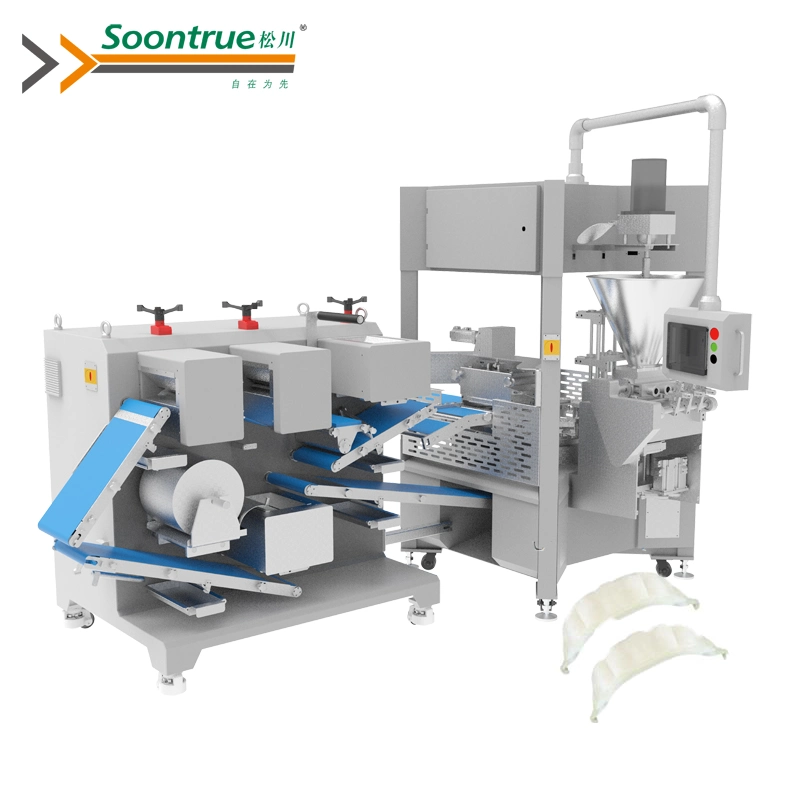

Automatic high speed dumpling machine gyoza making machine for frozen food industry with robot picker
Parameters
Product Information
Weight: 18-20g, 23-25g, 30g-35g
Shape: two folds, four folds
Delivery Terms
Parameters
| Model | ZK-2-ZJ |
| Capacity | 120-160 pcs/min |
| Power Supply | 380V 50Hz (3P) |
| General Power | 9.5Kw |
| Air Usage | 200L/min |
| Measurements | 3400×2850×2000 |
| Weight | 1500kg |
Product Information
Weight: 18-20g, 23-25g, 30g-35g
Shape: two folds, four folds
Delivery Terms
- Price terms: EXW, FOB, CIF
- Payment terms: 30%+70%, T/T
- Delivery terms: 20 working days after deposit received
- Professional international team works sincerely before and after sales.
- Free first time installation abroad.
- 24 hours on-line service.
Characteristics
1. Full-servo Control
Advanced full servo driving is adopted. There are 8 servo motors to control dumpling machine, which increases the stability of the machine and also makes operation and maintenance much easier.
2. Precise hollow rotating table
Molds are installed on precise hollow rotating table which has been registered worldwidely and dough sheet is recycled from the middle of hollow rotating table.
3. IPC Control
IPC control is adopted other than PLC control, which is more stable and timely, easy to be extended. Dough pressing part and forming part are connected by EtherCAT protocol, which makes connection easier and communication more stable.
4. Higher pricision, longer service life
All independent reducers are imported with high precision, which improves machine precision and prolongs service life.
6. Machine Structure SUS304
Machine structure is made of stainless steel 304. Good sealing performance and high waterproof performance make the machine can be washed by water.
7. New deign, lower using cost
New design adopted, makes the machine spare parts 5% less than traditional dumpling machine, synchronous belt with holes cancled, which decrease the cost of using machine.
More products can be made by Soontrue machines.1. Full-servo Control
Advanced full servo driving is adopted. There are 8 servo motors to control dumpling machine, which increases the stability of the machine and also makes operation and maintenance much easier.
2. Precise hollow rotating table
Molds are installed on precise hollow rotating table which has been registered worldwidely and dough sheet is recycled from the middle of hollow rotating table.
3. IPC Control
IPC control is adopted other than PLC control, which is more stable and timely, easy to be extended. Dough pressing part and forming part are connected by EtherCAT protocol, which makes connection easier and communication more stable.
4. Higher pricision, longer service life
All independent reducers are imported with high precision, which improves machine precision and prolongs service life.
5. Easy Filling Weight Adjust
Filling part is no longer driven by cam mechanism but controlled by imported reducer. Weight of filling can be adjusted in touch screen and there is no need to adjust the filling part in machine by hand.6. Machine Structure SUS304
Machine structure is made of stainless steel 304. Good sealing performance and high waterproof performance make the machine can be washed by water.
7. New deign, lower using cost
New design adopted, makes the machine spare parts 5% less than traditional dumpling machine, synchronous belt with holes cancled, which decrease the cost of using machine.
