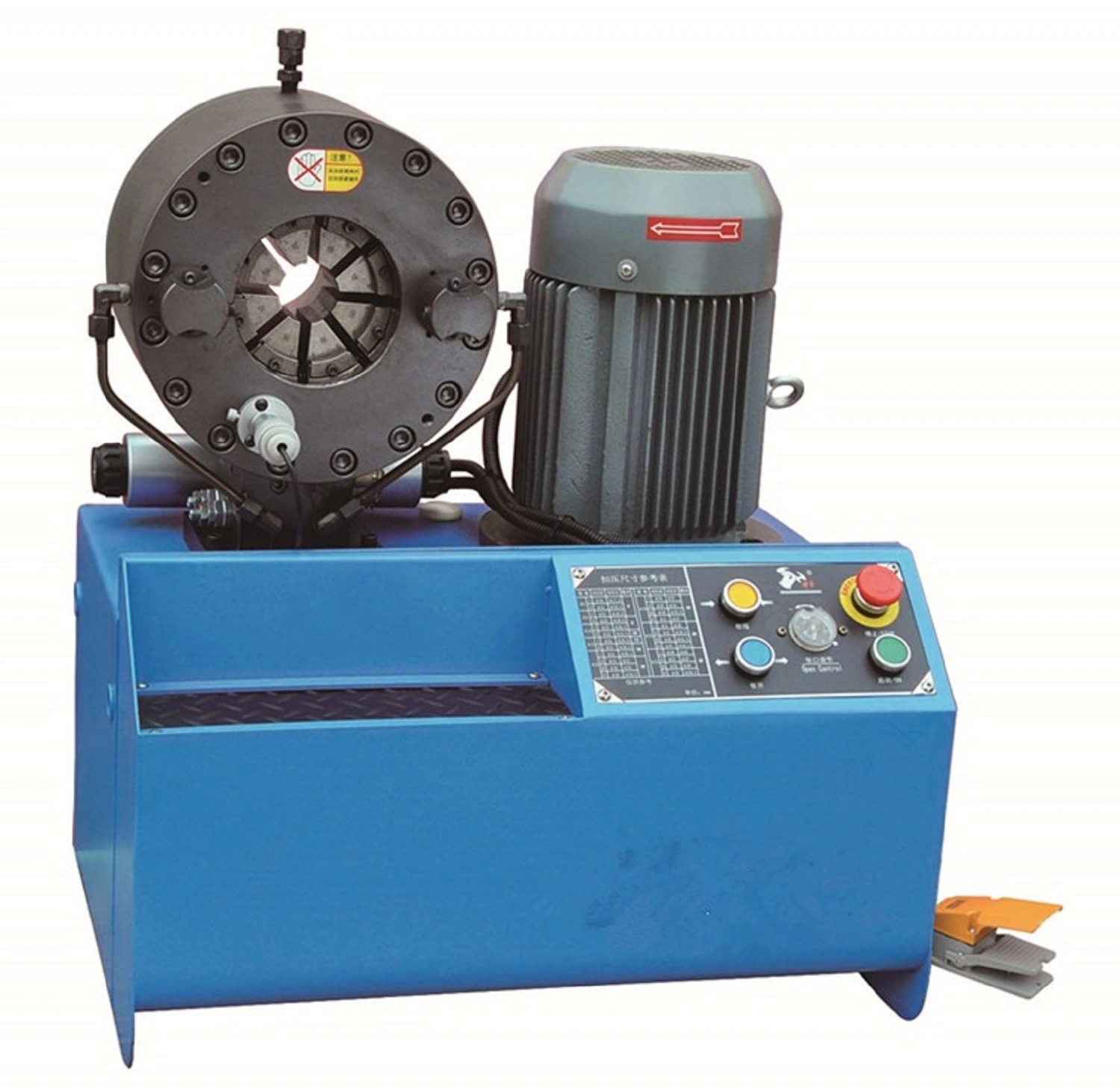

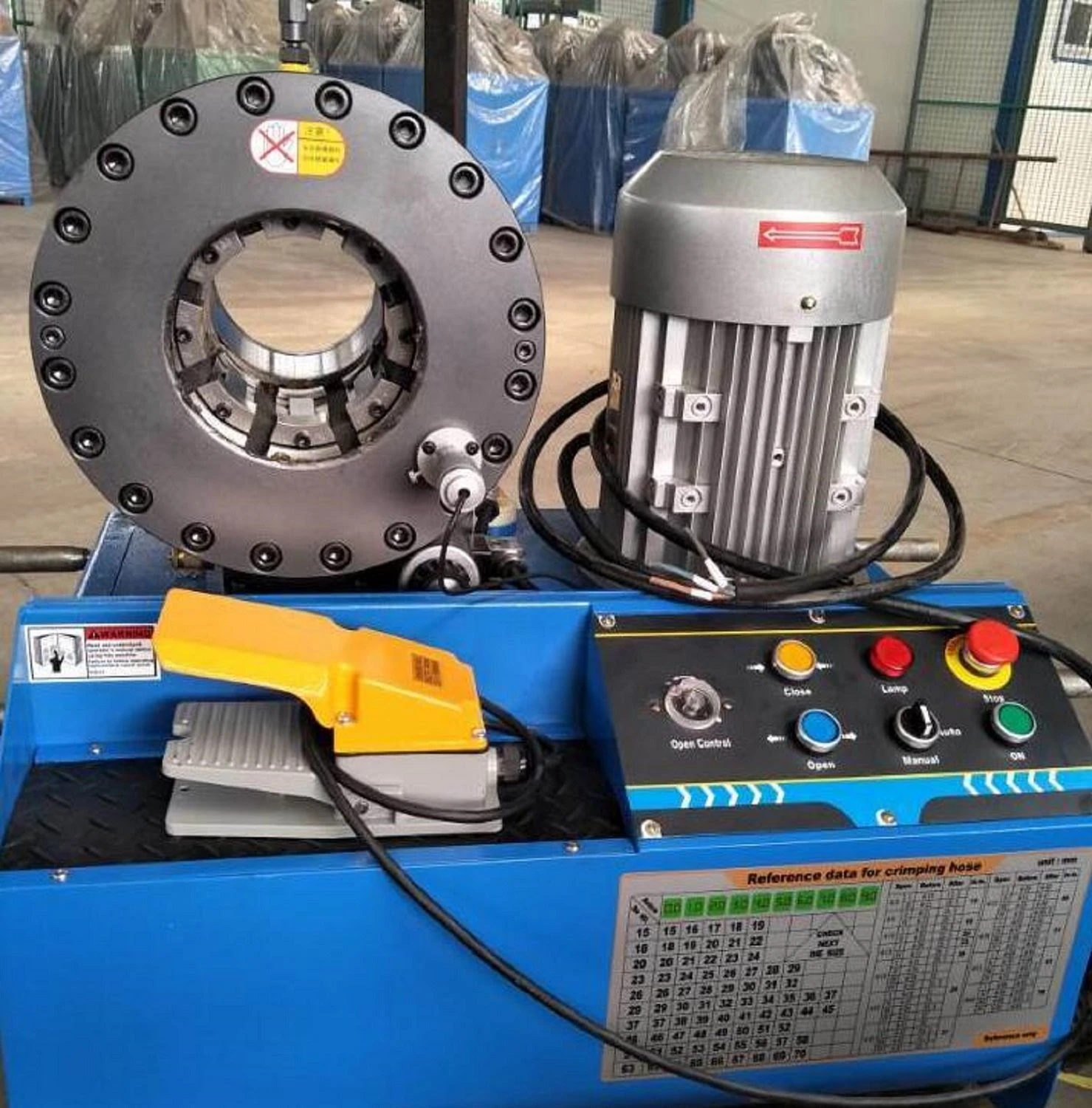

Hydraulic hose crimping machine
RS-91H(PLC computer type)
RS-91H(PLC computer type)
Product details :
☆ PLC type hose crimping machine function introduction:
Technology and innovation, the new electronic control provider by RS-91H. Excellent performance and higher precision during the whole working process by enabling the implementation of any required customization.
A simple software, supported by a new touch screen color display allows even less experienced operators to quickly learn how to use the machine after a few uses.
☆ Technical data of RS-91H:
Crimp range | 1/8" ~2 " 4SP |
Standard voltage & motor | 380/4kw |
Opening without dies | 122mm |
Opening | ±28mm |
Swaging force | 5300KN |
Open | 1.5s |
Close | 8s |
Die profile | 91 series |
Optional voltage&motor | as customer's requirement |
No. of standard die set | 10sets |
Systematic pressure | 30Mpa |
L*W*H | 690mm*465mm*728mm |
Main features of new hose crimping machine RS-91H:
1.3CYCLES:Manual,semiautomaticand automatic;
2.Settablecrimpingdiameter;
3.Settableopeningdiameter;
4.Crimpingdiametercorrection;
5.Settablecrimpingtime;
6.Storageandrecallthecrimpingparameters;
7.Codesarchive
☆ Extremely dies quick change system introduction:
Hose crimping machine use different set of dies to process different hose diameters. Manual change may therefore result in a waste of valuable time for the operator.
This QUICK CHANGE TOOL allows replacing the complete set of dies through a single and easy operation thus avoiding the removal of one die at a time.
The special quick change tool can enable an accurate positioning of the dies into the crimping head.
Such method makes the operation extremely quicker and easier without any risk for the operator and the machine.
As a matter of fact, an incorrect positing of the dies segments can damage the master dies and the dies as well, causing an interruption of the working cycle and consequent high reparation costs.
☆Die chat:
Die bore(D) | Die length(L) |
15mm | 65mm |
18mm | 65mm |
20mm | 65mm |
23mm | 65mm |
26mm | 65mm |
29mm | 65mm |
37mm | 65mm |
46mm | 78mm |
51mm | 78mm |
63mm | 78mm |
Production Line
We have a strict line of production and strictly control every process.
(A) for raw material, we will check again by our inspector as per international standard. Only the raw material reach to international standard and allow enter kangmai facotry.
(B) for hydraulic and eletrical parts, such as valve, pump, motor and so on, we use famous brand both from China and abroad.However, we will check again when these parts enter our facotry.
(C) before the hose crimping machine enter our warehouse, the inspector check the machine roundess, taper, opening, speed, noise, apprance and so on. Only each parts is up to standard of ISO, CE standard, the machine can enter the warehouse.
(D) when the machine package, the inspector the dies, the package and other parts of clients requriment. Everything is ok, the inspector signed and machine allow to go out the facotry
Packing & Delivery
Packing Details : Packed by Wooden Case
Delivery Details : 3-30 days after order confirmed.
Careful packing and Ensure that the goods are arrived at destination in good condition
☆ Crimped sample by hose crimping machine RS-91H:
COMPANY INFORMATION:
RISING RUBBER, as a professional manufacturer and exporter with experience of 10 years, offers a broad range of Hydraulic Hose, Air Hose, Fuel Hose, Suction & Discharge Hose, Sand Blasting Hose, various PVC Hoses, Fittings and relative products to suit different types of applications.
Designed in compliance with international quality standards (SAE, DIN, ISO), our range of products is an outcome of persistent endeavors to attain maximum client satisfaction.
Our production lines include HIGH-SPEED and HIGH-TECH bunching machines, braiding machines, and LIQUID NITROGEN COOLING SYSTEM, which promotes our capacity to 150 000 meters per month and quality far ahead of competitors. A comprehensive laboratory offers inspection covering all production process from raw material, semifinished, to finished products and lasting to quality tracibility system after sale.
Today, we have a distinguished client list in the construction, mining & earthmoving industries. With strict quality control system and annual production capacity of 4 million meters, our products are also reaching foreign shores through markets in the Europe, North America, East Asia and other areas.
We believe our success is tied directly to the profitable growth and satisfaction of our customers. So if interested, do not hesitate to contact us.
