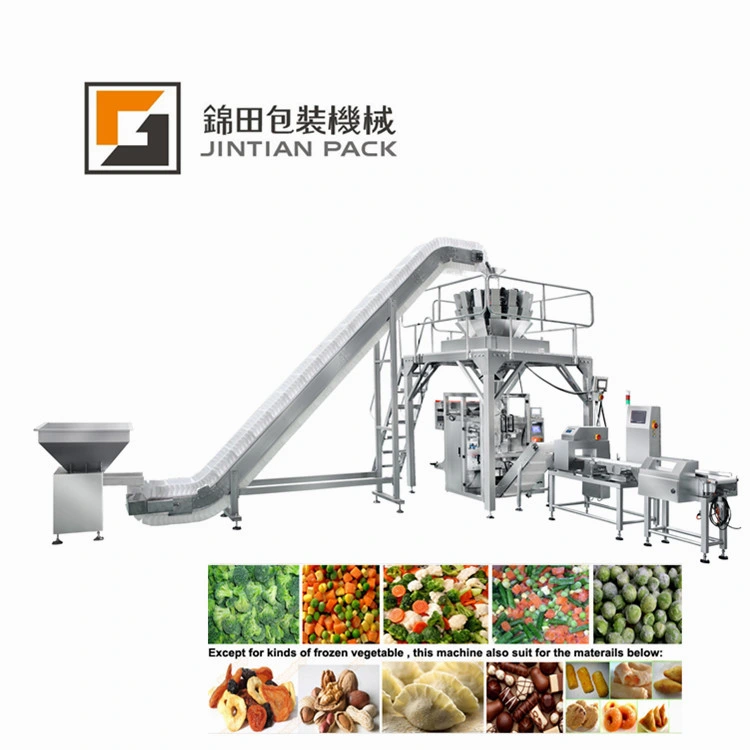

Combined weighing and packaging system for frozen food, dumplings, meatballs, fishballs

Technical Parameters:Application:     Suitable for packaging many different kinds of frozen products, such as dumpling, chicken legs, fish, pork, and etc.Weigher Technical characteristics: 1.IP65 cabinet design, dimple plate for food contact parts.2.Air pressure system built in cabinet prevents the electronic

Featured Products


Combined Weighing Packing System for Frozen Food, Dumpling, Meat Ball, Fish Ball
Combined Weighing Packing System for Frozen Food, Dumpling, Meat Ball, Fish Ball
Combined Weighing Packing System for Frozen Food, Dumpling, Meat Ball, Fish Ball


Combined Weighing Packing System for Frozen Food, Dumpling, Meat Ball, Fish Ball
Technical Parameters:
Application:
    Suitable for packaging many different kinds of frozen products, such as dumpling, chicken legs, fish, pork, and etc.

Weigher Technical characteristics:
1.IP65 cabinet design, dimple plate for food contact parts.
2.Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
3.Uniform design standards contribute to better interchangeability for spare parts.
Packing Machine Technical characteristics:
1.PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, and finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance; belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple.

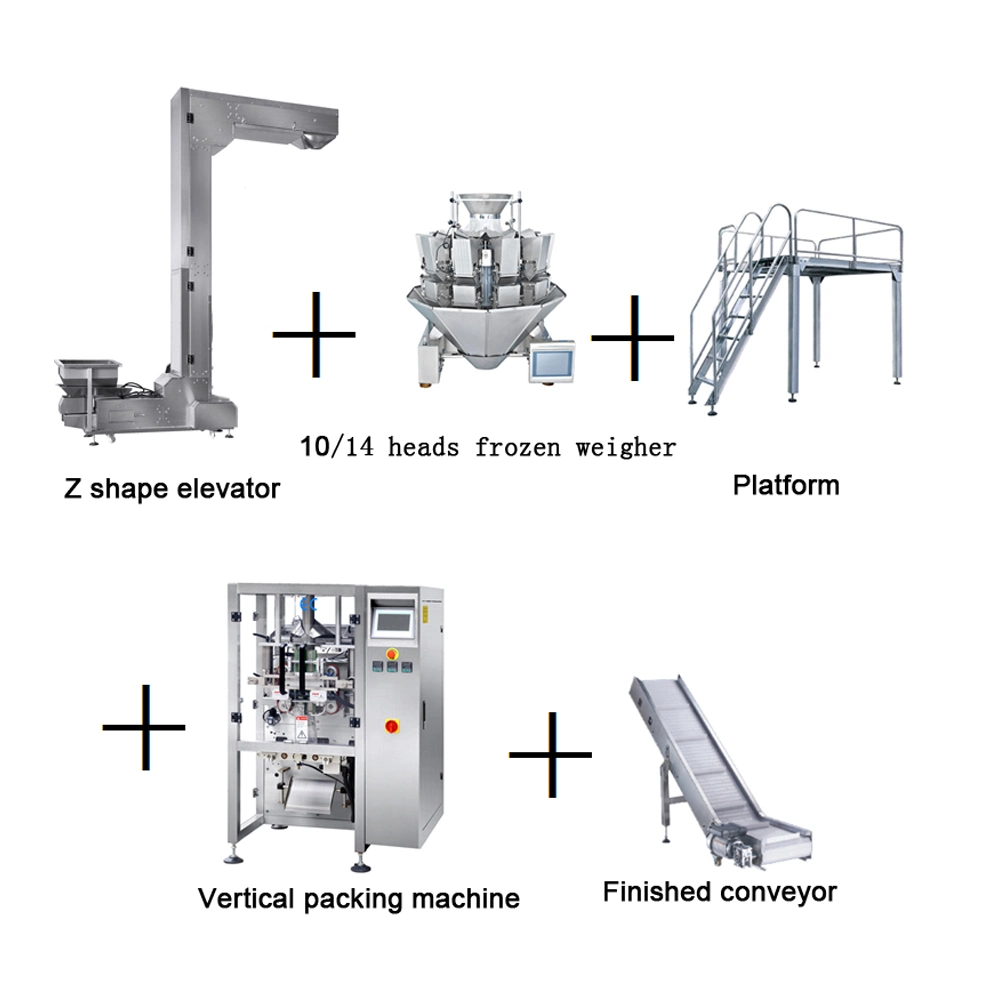

JT-720 Automatic vertical packing machine



Combined Weighing Packing System for Frozen Food, Dumpling, Meat Ball, Fish Ball
Type         JT-720
Bag length 80-470mm(L)
Bag width 100-350mm(W)
Max width of roll film720mm
Packing speed5-60bags/min
Air consumption1.0 Mpa
Gas consumption0.4m3/min
Power voltage220VAC/50Hz/60HZ
Power3 KW
Dimension1700mm(L)*1270mm(W) *1900mm(H)
Weight700 kg
JT-14 14 heads frozen weigher



Combined Weighing Packing System for Frozen Food, Dumpling, Meat Ball, Fish Ball
TypeJT-14
Measure number14
Range of single weighing10-3000g
Quantity precision0.5g-1g
Average tolerance of single bag0.2-0.7g
Weighing speed120bags/min
Hopper capacity5L
Preliminary programs100kinds
Net/gross450/490Kg
Packing size (L)1700*(W)1110*(H)1130mm

JT-370 Large slanting elevator



Combined Weighing Packing System for Frozen Food, Dumpling, Meat Ball, Fish Ball
ModelJT-370
Hopper3.5 L
Convey speed3750mm/ min
Power1100W
Convey measure4T/H(Rice)
Food grade materialPVC, PU,other material
Height3920 mm
Weight500 kg


Remark:
1.FOB Guangzhou Price.
2.Payment terms: by T/T 50% down payment when order, rest 50% pay before shipment.
3.One-year warranty.
4.The quotation is valid for six month
5.Deliver time: 60-90 working days after received the deposit
6.Packing: Standard export wooden cases.
