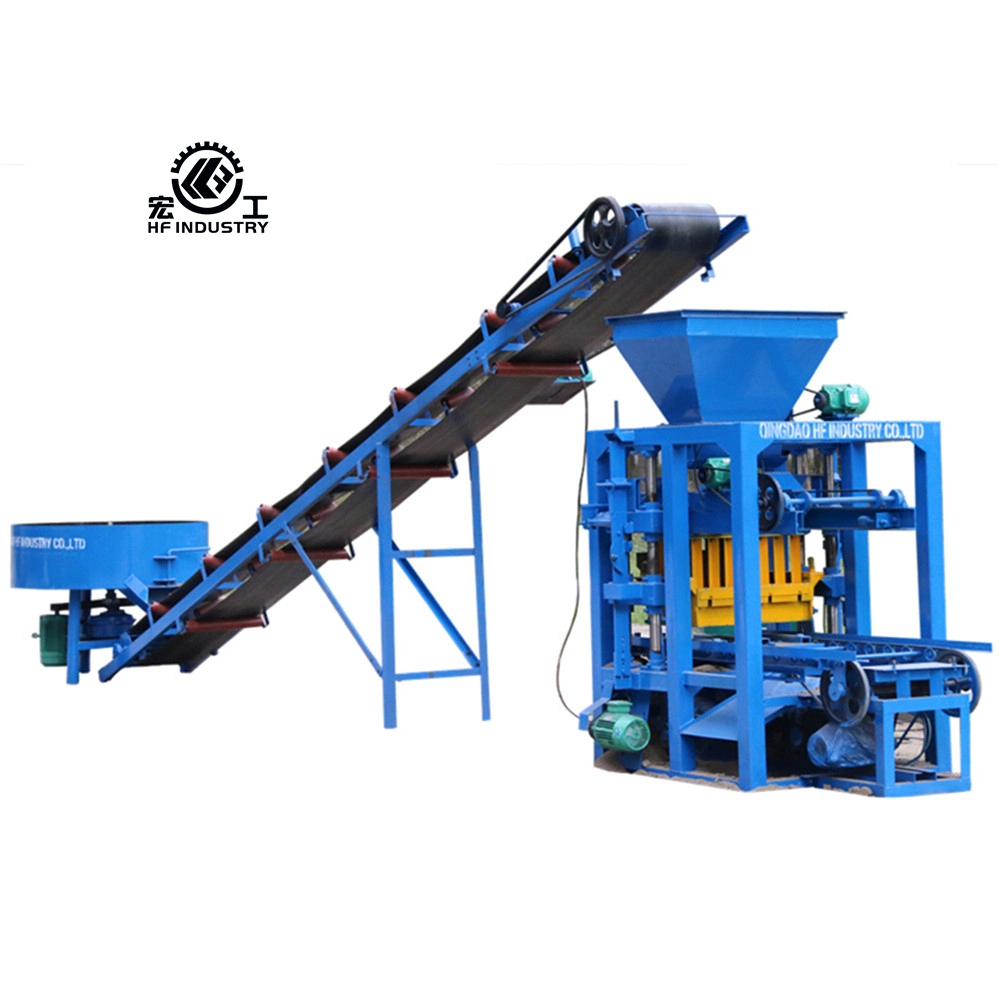

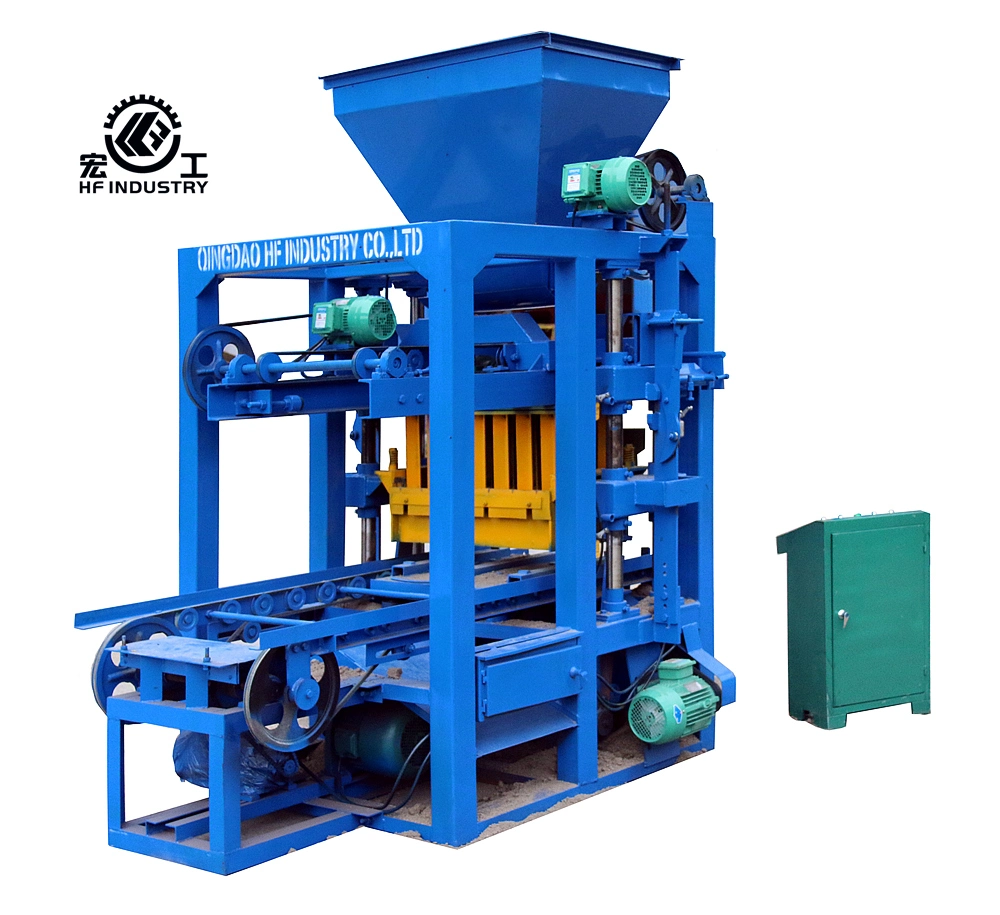

QT4-26 semi automatic cement block making machine concrete brick forming machine
Siemens Motor / Omron Switch / International Standard Steel / Manganese steel mold
QT4-26 Block making machine specification
Product show
Block Sample List
The material can be flyash, slag, gangue or the others industrial waste, river sand, gravel, cement etc. Makes different sizes of hollow blocks, porous blocks, curbstone, pavement blocks.If add color machine, it can make layering blocks.
Siemens Motor / Omron Switch / International Standard Steel / Manganese steel mold
1. Electric QT4-26 is a kind of semi-automatic type based on the orignal medium and small-scale block machines by us.
2. The movement of the upper mould and the baiting valve are controlled by electric motor greatly save the work labor and imporve the production efficiency.
3. This machine use electric-driven and mechanical control together to finish machine different movement, and make sure the machine work right and reduce the operation fault,it is easy to operate.
4. It use upside and bottom vibration together,quick molding,high density and intensity.
5. Electric QT4-26 can also work with two machines together,greatly improve the productivity.
QT4-26 Block making machine specification
| Main Technical Specifications | |
| Overall Dimension | 2060x1730x2580mm |
| Exciting power | 35KN |
| Molding pieces | 400*200*200 4pcs/mold(hollow brick) 480-550pieces per hour 400*240*200 3pcs/mold(porous brick) 360-415pieces per hour 240*115*53 12pcs/mold (solid brick ) 3120-3600pieces per hour |
| Productivity | 2000-2500pcs/day |
| Cycle Time | 26-30 seconds |
| Vibrating Frequency | 4200 rolls/minute |
| Weight | 2000kg |
| Motors Power | 14.25KW |
| Pallet Size | 910x480mm |
Product show
Block Sample List
The material can be flyash, slag, gangue or the others industrial waste, river sand, gravel, cement etc. Makes different sizes of hollow blocks, porous blocks, curbstone, pavement blocks.If add color machine, it can make layering blocks.
